CFA PILES

CFA Cropper

Traditional linked modular cropper which can be adjusted to suit required pile sizes.

Using the provided lifting frame Has the advantage of minimal restriction.

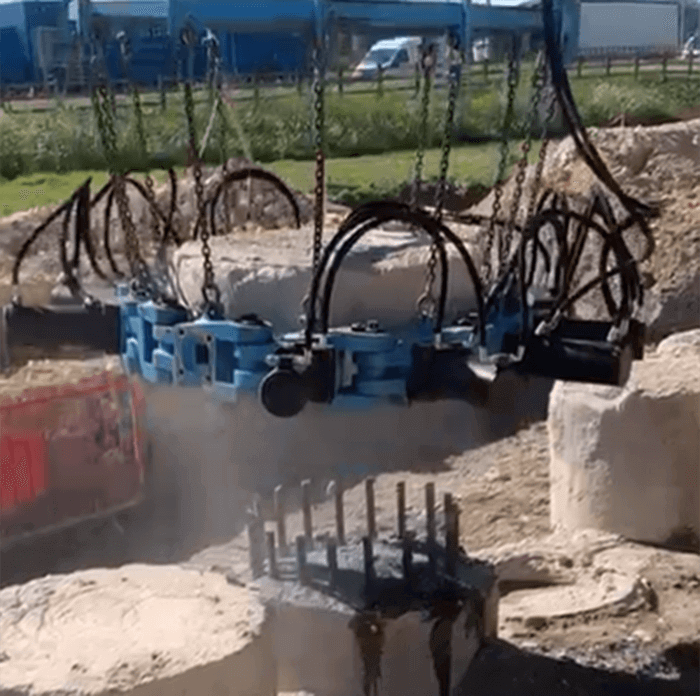

The CFA Cropper will cut circular augured concrete piles from 300mm – 1200mm diameter. It’s modular design allows it to be adjusted to suit different pile sizes on site.

Adjustments of 100mm at a time can be achieved easily by adding a half link without any hydraulic interference.

CFA Colour Diagram

CFA Cropper Specifications

  • Pile Size: 300 mm
  • Weight: 770 Kg
  • Length: 1646 mm
  • Width: 1646 mm
  • Height: 343 mm
  • Excavator min size: 8 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 450 mm
  • Weight: 825 Kg
  • Length: 1709 mm
  • Width: 1709 mm
  • Height: 343 mm
  • Excavator min size: 8 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 600 mm
  • Weight: 990 Kg
  • Length: 1854 mm
  • Width: 1854 mm
  • Height: 343 mm
  • Excavator min size: 13 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 750 mm
  • Weight: 1150 Kg
  • Length: 2020 mm
  • Width: 2020 mm
  • Height: 343 mm
  • Excavator min size: 13 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 900 mm
  • Weight: 1320 Kg
  • Length: 2161 mm
  • Width: 2161 mm
  • Height: 343 mm
  • Excavator min size: 13 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 1050 mm
  • Weight: 1475 Kg
  • Length: 2325 mm
  • Width: 2325 mm
  • Height: 343 mm
  • Excavator min size: 13 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
  • Pile Size: 1200 mm
  • Weight: 1650 Kg
  • Length: 2463 mm
  • Width: 2463 mm
  • Height: 343 mm
  • Excavator min size: 13 tonne
  • Max operating pressure: 275 bar
  • Flow rate: 90-180 L/min
cfa sizing

Gallery & film

Images and film of our Dual Cropper in action throughout sites in the UK.
